Adebanji Adelowo

Lid-driven cavity PINNs

PINN velocity accuracy across Reynolds numbers.

Status: Ongoing research. Results below are from the specified reduced-budget experiment, not the upstream full-budget configuration.

Experimental setup

Reduced Apple MPS study at Re = 10, 100, 400; three seeds per Reynolds number and verified finite-difference reference.

Results achieved

Recorded results and study scope
MetricResult
Re = 10Mean velocity error 0.462
Re = 100Mean velocity error 1.072
Re = 400Mean velocity error 0.946
Full-budget CUDA runsNine planned

Experimental figures

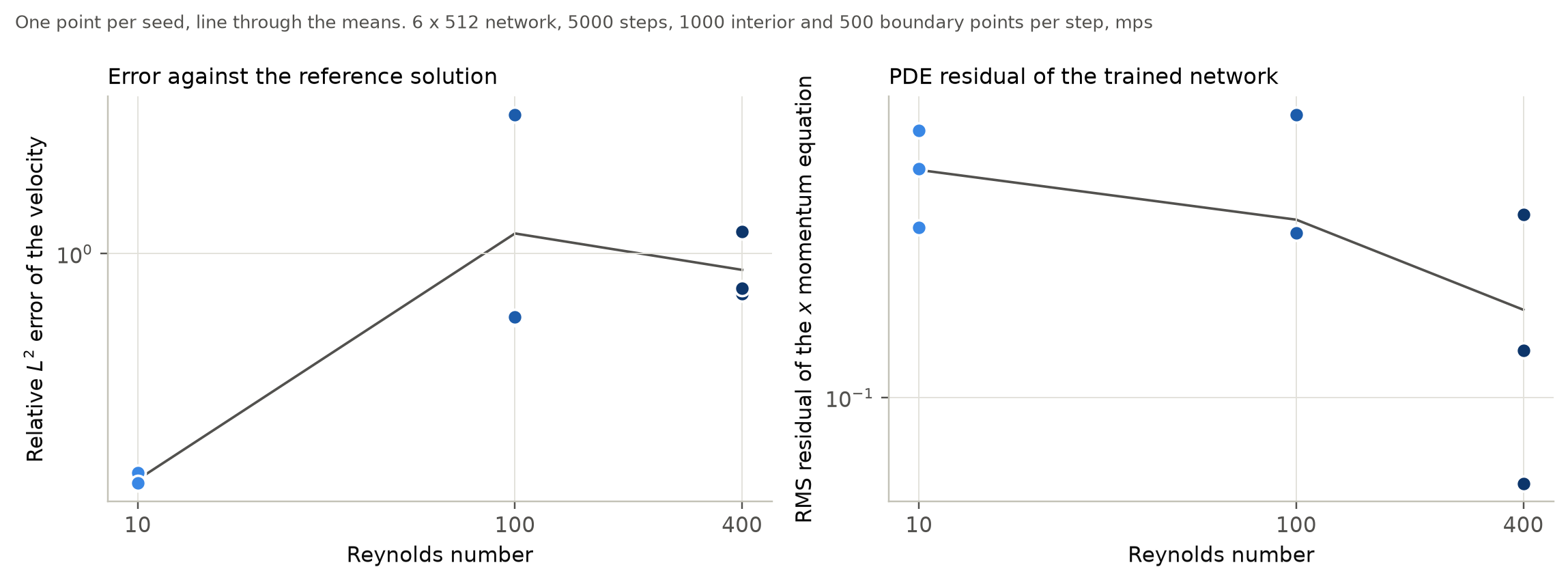

Lid-driven cavity PINNs experimental figure 1
local error vs reynolds · Full figure ↗

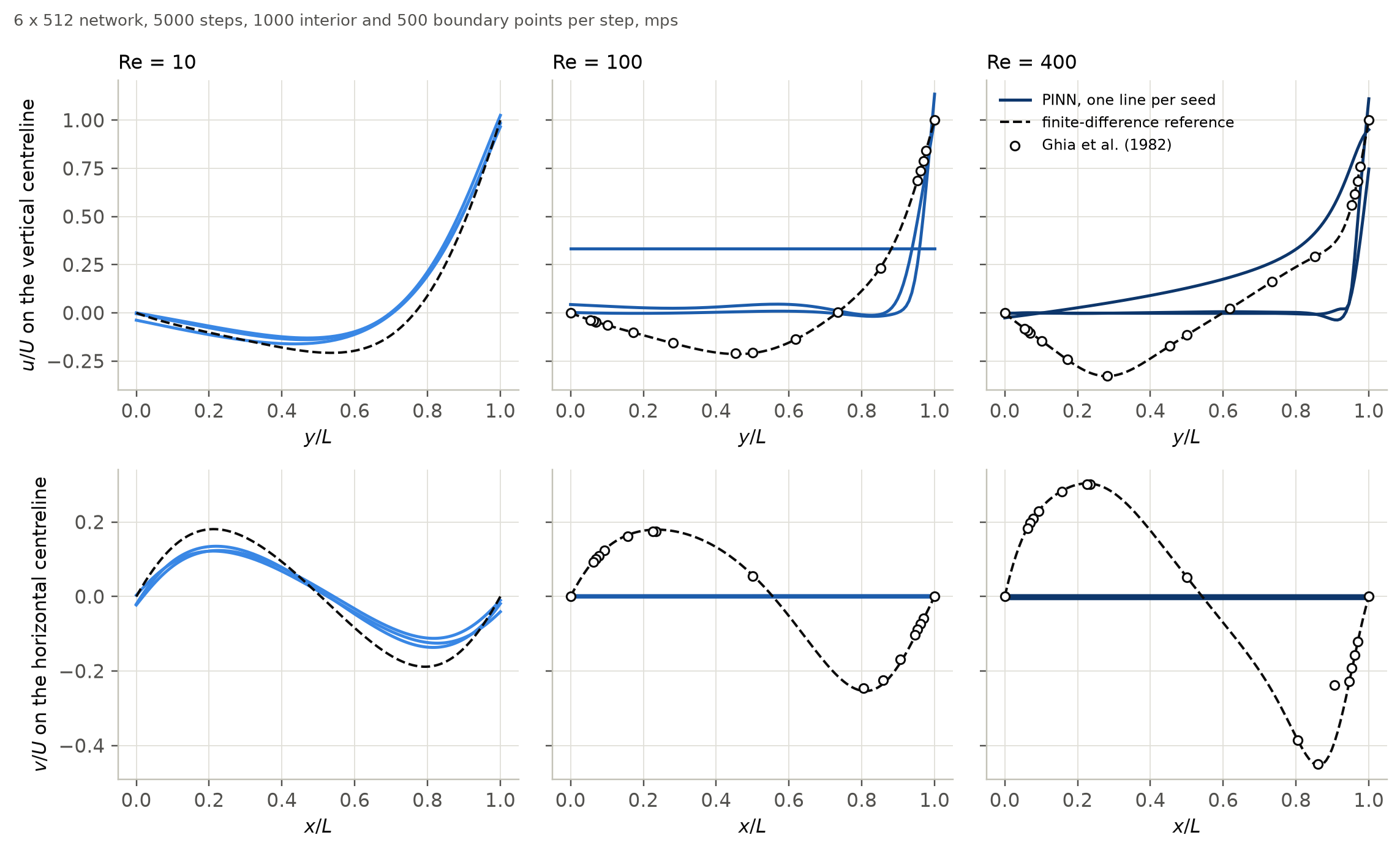

Lid-driven cavity PINNs experimental figure 2
local centrelines · Full figure ↗

Figures are drawn directly from the project's public GitHub repository.

Next steps

Run nine full-budget CUDA experiments and compare with the reduced-study results.

For reproducibility, consult the repository's configuration files, scripts, saved results and scientific audit.
